Multi-control mode

• RF 433 Remote Control（without battery inside）
• Manual Control:When powered on, the curtain could be pull by hand with 10cm. Then the curtain open or close automatically Manual operation without power: Without power, the curtain could be controlled by hand
• APP Control by Broadlink app ,Tuya Smart and Smartlife app

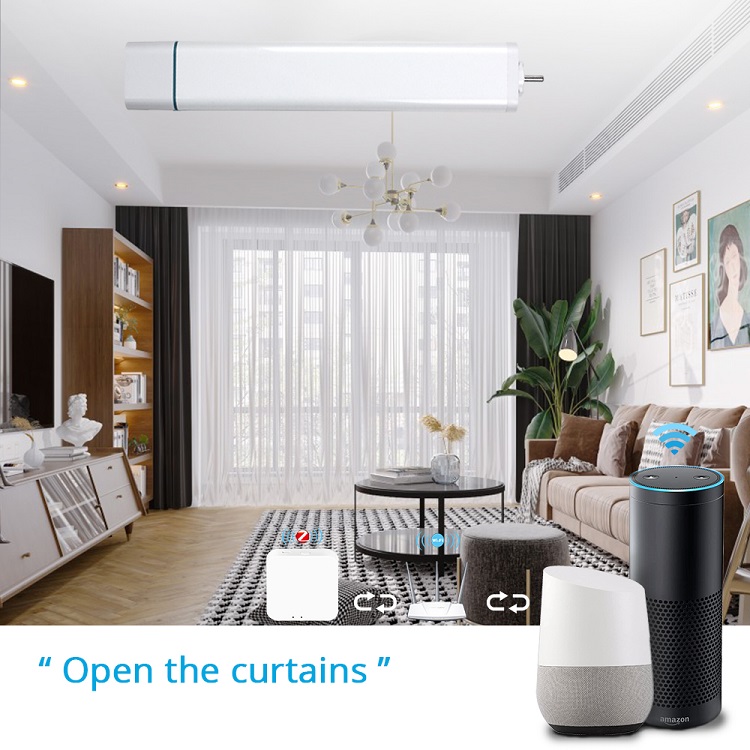

• Voice Control By Alexa Echo and Google home

Sigle track support Slide to side open and double open

Single Track Support Multiple installation methods

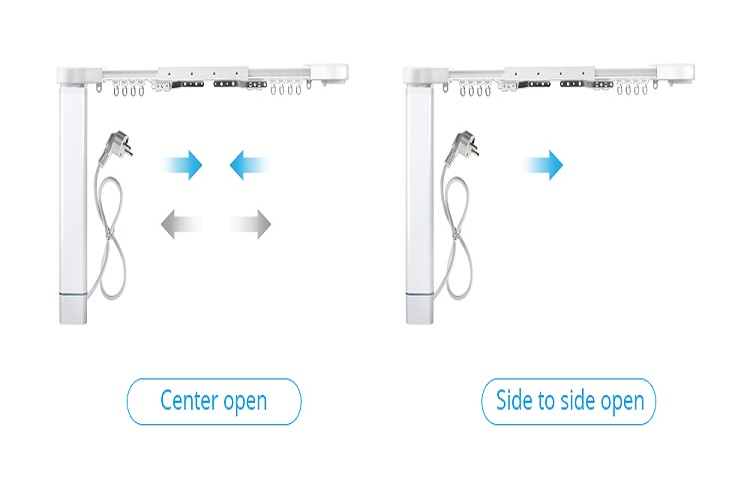

• Slide to side open and double open
• Motor could install in right or left as you need(the Suv gear box was 2psc same type could mount in the right and right)
• Motor could install in left side,or right side
• Scan the QR Code to got watch the video,that will help you to install more easier
• Come with wall mount bracket and ceiling mount bracket, so you can install as your like.

Product Details

Package list:

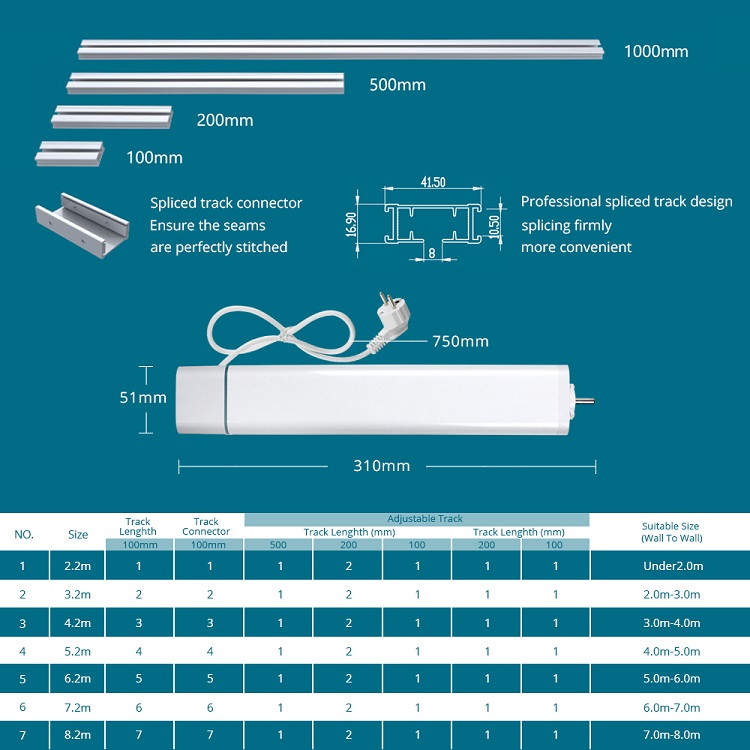

• Package with 1 Meter DIY tracks :including 1psc 0.5m+2psc 0.2m+1psc 0.1m curtain tracks .
• Master(Suv gear box) 2 psc.
• Pulley 2 psc(in one bag).
• Runner 8 psc/bag (2.2 Meter have 3 pags,add 1 meter tracks was add 1 bags).
• Track connecting bracket (1psc/ meter ).
• Bracket (Wall install bracket and ceiling install bracket) and screws.
• Belt 1 roll.
• USB dongle 1psc
• US plug 1psc
• RF433 Hand remote 1psc(2psc AAA Battery no including in the package)
• RF433 Wall remote 1psc(1psc CR2032 Battery no including in the package)
• Manual 2psc

Direction Change

When the motor run in different direction which is not same as the emitter order, user could operate as follows:

Press the CLOSE & OPEN together

The motor will vibrateonce in every direction

Short press STOP within 3 times quickly

The motor will vibrateonce in every direction

Direction Changeis finished

Technical Details
